Integration into relacs

Relacs is a highly configurable recording tool for electrophysiology.

It is one use-case showing how to integrate automated data storage and data annotation into the recording process.

Relacs overview

In the Neuroethology group relacs is used to record the activity of single neurons during electrophysiological experiments. It controls the experiment, presents stimuli, performs online analyses, adapts stimuli in a closed loop fashion, and stores data to file. Being configurable implies that settings and properties are not forseeable at compile time. Accordingly it requires a lot of flexibility on the side of the storage backend. At the same time it knows a lot of metadata that are essential for corretly analyzing the data.

Figure 1: The relacs user interface. The UI is divided into four panels. Top left: Filter and detector plugins that are used to detect events in the recorded data (such as action-potentials, spikes). Top right: Main panel showing the four recorded traces (membrane potential, fish’s electric organ discharge global, same at a reference location, the stimulus applied during the experiment) yellow dots indicate detected events. Bottom left: diverse control panels, or other displays. Bottom right: Space the currently active research protocol (RePro) can use to display data or interact with the experimenter.

In the depicted use-case, several traces are recorded in parallel (usually sampled with 20, 40, or 100 kHz per channel 16 bit, depending on experimental requirements).

1. The neuron’s membrane voltage (V-1).

2. The fish’s electric organ discharge (EOD), global measurement.

3. The local measurement of the EOD (LocalEOD-1).

4. The stimulus put into the tank (GlobalEFieldStimulus).

5. The times of detected spikes (Spikes-1).

6. Sometimes the times of EOD discharges and detected chirps (communication signals).

Metadata

Relacs knows a lot of metadata that are either configured before the experiment was started (for example the parameters used when measuring a firing rate vs intensity curve, the left figure below), are automatically adapted, or have to be entered by the user when storing the data (right figure below) or are derived from the recorded data (average firing rate, the EOD frequency, etc).

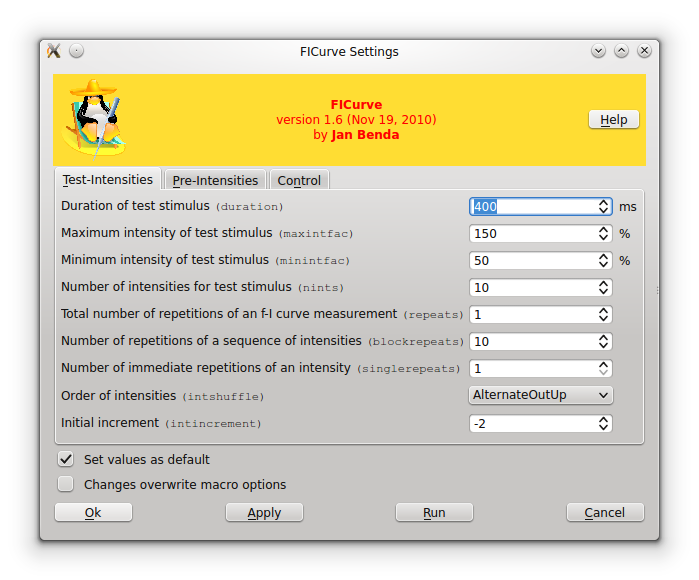

Figure 2	Figure 3

A recording session

Once the recording of a neuron has been established, we are ready to start running the actual experiment. Either pre-defined macros are used to control the experiments or the experimenter starts research protocols (RePros) manually.

During a recording session, the “data time” is not necessarily real time. Data time proceeds only when the acquisition is active and data is actually recorded and stored to disk, this is under control of the currently active research protocol (RePro). Figure 4 below illustrates this.

Figure 4: A recording session becomes active once the acquisition is switched on (red bar). Data acquisition, however, data is stored in the NIX file, when the currently running RePros demands it. In this example session there are two RePros active, the so called “Baseline” (green) and the “fi-curve” (blue). Within the time the fi-curve RePro is active three stimuli are presented (light blue). For each stimulus presentation the fi-curve RePro applies a stimulus with a different intensity (contrast, blue numbers).

Data storage using NIX

So much for the background. In the following we will illustrate how such data is persisted in NIX files and how to work with the data. Since relacs is programmed in C++ the nixio c++ library is used for this.

Figure 5: All four recorded traces and all event traces (only the spike events are shown here) are stored in nix::DataArrays. Whenever a RePro is active a nix::Tag is created that stores the start time and temporal extent (in data time, see above) and links to metadata nix::Section that stores the static RePro parameters, i.e. those that do not change during this RePro run. A RePro may apply certain stimuli (the fi-curve RePro) and these stimulus times and extents are stored in a nix::MultiTag entity. It further links to some more metadata entries. Some parameters, in this case the stimulus “contrast” changes with each stimulus presentation. This information is not stored in the metadata but is considered a feature of the stimulus presentation. That is, we create a nix::DataArray to store these numbers, one for each stimulus presentation, and link it to the nix::MultiTag as an indexed nix::Feature (see adding features for details).

Storing of continuously sampled data

The continuous traces in figure 5 are continuously sampled 1-D vectors. This only dimension represents time, the measured values themselves are double values. In NIX data is stored in nix::DataArray entities. The regular sampling of the time dimension is defined using a nix::SampledDimension (see storing data for more information). Since the duration of the recording is unknown the data is continuously written to file.

The following code block illustrates the basic steps (the full implementation can be found here ):

Initialization of the continuously sampled input traces

void SaveFiles::NixFile::initTraces ( const InList &IL )
{
   for ( int k=0; k<IL.size(); k++ ) {
      NixTrace trace;
      string data_type = "relacs.data.sampled." + IL[k].ident();
      trace.data = root_block.createDataArray( IL[k].ident(), data_type, nix::DataType::Float, {4096} );
      std::string unit = IL[k].unit();
      nix::util::unitSanitizer( unit );
      if ( !unit.empty() && nix::util::isSIUnit( unit ) ) {
          trace.data.unit( unit );
      } else if ( !unit.empty() ) {
          std::cerr << "NIX output Warning: Given unit " << unit << " is no valid SI unit, not saving it!" << std::endl;
      }
      if ( !IL[k].ident().empty() )
          trace.data.label( IL[k].ident() );
      nix::SampledDimension dim;
      dim = trace.data.appendSampledDimension( IL[k].sampleInterval() );
      dim.unit( "s" );
      dim.label( "time" );
      trace.index = IL[k].size();
      trace.written = 0;
      trace.offset = {0};
      traces.push_back(std::move( trace ));
   }
}

In this code snippet IL is a vector of relacs::InData objects. These provide information about the data coming in. Line 4: for each k th element of the InputList, a NixTrace object is created that buffers the entity for later re-use. Line 6: a nix::DataArray is initialized with a name, a type (line2), the data type and an initial size. Selecting the initial size defines the chunksize applied by the underlying HDF5 library. Selecting a too small chunk size will cause performance problems. Lines 16–19 set the dimension information (nix::SampledDimension). At this point, no data has been written to file.

Writing actually happens in a small helper function that works with the NixTrace object created before:

Writing chunks of data to disk once they become available.

void SaveFiles::NixFile::writeChunk( NixTrace &trace, size_t to_read, const void *data )
{
   typedef nix::NDSize::value_type value_type;
   nix::NDSize count = { static_cast<value_type>( to_read ) };
   nix::NDSize size = trace.offset + count;
   trace.data.dataExtent( size );
   trace.data.setData( nix::DataType::Float, data, count, trace.offset );
   trace.index += to_read;
   trace.written += to_read;
   trace.offset = size;
}

Storing of event data

Neuronal events such as action potentials are stored in nix::DataArrays. Again, the data is basically a 1-D vector in which the one dimension represents time.

Creating nix::DataArrays for events.

void SaveFiles::NixFile::initEvents( const EventList &EL, FilterDetectors *FD )
{
   for ( int i = 0; i < EL.size(); i++ ) {
      if ( (EL[i].mode() & SaveTrace) == 0 ) {
          continue;      //Nothing to save
      }
      NixEventData ed;
      ed.el_index = i;
      ed.index = EL[i].size();
      ed.offset = {0};
      std::string ident = EL[i].ident();
      std::string data_type = "relacs.data.events." + ident;
      if ( root_block.hasDataArray( ident ) )
          ident = EL[i].ident() + "_events";
      ed.data = root_block.createDataArray( ident, data_type, nix::DataType::Double, {256} );
      ed.data.unit( "s" );
      ed.data.label( "time" );
      ed.data.appendAliasRangeDimension();
      ed.input_trace =  FD->eventInputTrace( i );
      events.push_back(std::move( ed ));
   }
}

This is very similar to the initTaces above. Two things are wroth mentioning. Line 14: The initial size was chosen to be much smaller, we expect less events than data points in the traces. Line 17: The values stored in the nix::DataArray are times, (in data time, see above). Thus, we apply an nix::AliasRangeDimension which indicates that the values themselves define the dimension (see dimension documentation for details on dimensions).

Noting RePro runs

Whenever a RePro is started the start time (data time) is noted and nix::Tag is created. This indicates when and how long a RePro ran and links to respective metadata (settings of the RePro). The Tag refers to all event and continuous data traces (as references see here for more information of tagging). This allows for automatic data retrieval of the thus tagged slabs of the data (below).

Defining stimulus segments

Within a RePro run relacs may present stimuli. Stimulus epochs are stored within a nix::MultiTag. Other than the simpler nix::Tag, the MultiTag is meant to tag multiple regions of interest in the data that belong together.

If a RePro puts out a number of identical stimuli, start times and extents are stored in the same MultiTag. A RePro might also apply stimuli that are not identical due to different parameters. In this case there will be a nix::MultiTag for each unique stimulus parametrization.

In relacs RePro options can be given the OutData::Mutable flag, which communicates that the respective parameter is intended to change during the RePro run. All mutable parameters are stored as an nix::LinkType::indexed nix::Feature (see f-i curve example in figure 5). With this approach, the parameters become directly available during further data processing (see below).

Working with relacs-flavored NIX files

For the following we will use this file containing simulated data. The simulation models the neuronal activity of a p-type electroreceptor afferent in the electrosensory system of the weakly electric fish Apteronotus leptorhynchus. The code snippets shown below are part of this script which uses the python library (nixpy). To run the example code nixpy, numpy, and matplotlib python packages are required.

A simple plot

The first example simply plots a short part of the recorded traces.

Creating a simple plot of one of the recorded traces.

def plot_data_snippet(filename, trace_name="V-1", samples=5000):
    f = nix.File.open(filename, nix.FileMode.ReadOnly)
    b = f.blocks[0]
    trace = b.data_arrays[trace_name]
    dim = trace.dimensions[0]

    plt.plot(dim.axis(samples), trace[:samples], label=trace.name)
    plt.xlabel("%s [%s]" % (dim.label, dim.unit))
    plt.ylabel("%s [%s]" % (trace.label, trace.unit))
    plt.legend()
    plt.show()

    f.close()

All information that is needed to create a basic plot of the stored data is attached to the DataArray (trace). Its label and unit define the y-labels, the dimension descriptor (nix::SampledDimension) contains all information that is needed to label the x-axis. In line 7 a convenience function of the dimension descriptor (see dimensions) is used to get a vector of time values matching the data.

In this code snippet we use some prior information about the recorded data (we directly ask for the “V-1” trace). To find out which data traces are available we can search for nix::DataArrays that have the type relacs.data.sampled (see defined types below) by using list comprehension executing:

Finding which data traces are recorded.

sampled_traces = [da for da in b.data_arrays if "relacs.data.sampled" in da.type]
for t in sampled_traces:
    print(t.name, t.type)

Accessing metadata

Relacs knows a lot about the data and settings, this information is automatically saved to file and is attached to the only nix::Block entity.

The following code snippte shows how to access metadata about the subject that was used in this recording session.

Accessing metadata.

def print_subject_metadata(filename):
    f = nix.File.open(filename, nix.FileMode.ReadOnly)
    b = f.blocks[0]
    sections = b.metadata.find_sections(lambda sec : "subject" in sec.type.lower())
    for sec in sections:
        sec.pprint(max_depth=-1)
    f.close()

Two things are worth noting: Line 4 uses the section ‘s find method to find the “subject” section. The method takes a filter function as input argument. Here we filter on the section type. Line 6 uses the section’s pprint function to dump an overview to the command line. The max_depth=-1 argument defines that the full tree is recursively traversed.

Using Tags

The core of relacs is to stimulate and record the data. In the example file, two RePros have been run. The first one (BaselineActivity), is a simple one that just records without stimulation. The following code block shows how to get the data (the “V-1” trace) associated with the tag.

Get the tagged data.

def get_baseline_data(filename):
    f = nix.File.open(filename, nix.FileMode.ReadOnly)
    b = f.blocks[0]
    tags = [t for t in b.tags if "baseline" in t.name.lower() and "relacs.repro_run" in t.type]
    if len(tags) < 1:
        return
    tag = tags[0]

    data = tag.retrieve_data("V-1")[:]  # FIXME: beyond 1.5 this will be tag.data("V-1")
    trace = tag.references["V-1"]
    dim = trace.dimensions[0]

    plt.plot(dim.axis(len(data), dim.index_of(tag.position[0])), data)
    plt.xlabel("%s [%s]" % (dim.label, dim.unit))
    plt.ylabel("%s [%s]" % (trace.label, trace.unit))
    plt.show()

    f.close()

There are a few noteworthy lines here: Line 4 assembles all “BaselineActivity” tags (there may be more than one). We filter on the tag.name and tag.type (see table below), just to be sure. Lines 9–11 get all the information needed to plot the data. Line 9 uses the tag.retrieve_data method to access only the data of the V-1 trace that is tagged. tag.retrieve_data returns a DataView object and to actually read the data from file we access it with the [:] operator. Line 63, finally, plots the data. Two helper functions of the dimension descriptor are used to get the time axis. dim.index_of(tag.position[0]) gets the index of the start time of the tag. dim.axis() uses this offset index to return the correct time values.

Using Tags and Features

The “FI-curve” RePro is used to measure the neuron’s input-ouptut characteristic. Again, a nix::Tag is created for each run of the “FI-curve” RePro. The RePro puts out a set of stimuli. The stimulus segments and the stimulus amplitude are stored in a nix::MultiTag respectively one of its nix::Features.

Plotting the Firing rate versus Intensity curve. Note: The following code is kept rather simple and is suboptimal in several respects.

def plot_fi_curve(filename):
    f = nix.File.open(filename, nix.FileMode.ReadOnly)
    b = f.blocks[0]

    tags = [t for t in b.tags if "ficurve" in t.name.lower() and "relacs.repro_run" in t.type]
    if len(tags) < 1:
        return
    tag = tags[0]
    g = b.groups[tag.name]
    mtags = g.multi_tags
    if len(mtags) < 1:
        return
    mtag = mtags[0]

    intensity_feature = [ft for ft in mtag.features if "_intensity" in ft.data.name.lower()][0]
    rates = np.zeros(mtag.positions.shape)
    intensities = np.zeros(mtag.positions.shape)

    for i in range(mtag.positions.shape[0]):
        duration = mtag.extents[i]
        spikes = mtag.retrieve_data(i, "Spikes-1")[:]
        rates[i] = len(spikes) / duration
        intensities[i] = mtag.retrieve_feature_data(i, intensity_feature.data.name)[:]

    plt.scatter(intensities, rates)
    plt.xlabel("stimulus [mV/cm]")
    plt.ylabel("firing rate [Hz]")
    plt.show()

    f.close()

During a RePro run (the nix::Tag) there may be several stimuli presented. In lines 5-13 the nix::Group that has the same name as the Tag is used to get the nix::MultiTags that are related to the FI-Curve RePro run. In line 15 we use prior knowledge to search the nix::Feature that stores the stimulus intensity. Lines 16, 17 create variables for storing the x- and y-values for the plot (the stimulus intensities and the firing rates, respectively). The for -loop in lines 19-25 then iterates over the number of positions (stimulus segments) and reads the duration of each stimulus presentation (line 20) and the spike times observed in the respective stimulus segments. The firing rate is then simply calculated as the number of spikes per stimulus duration (line 22). The stimulus intensity is read from file using the mtag.retrieve_feature_data method(line 23, the method will be renamed in 1.5.x releases). Finally, the firing rate is plotted as a function of the stimulus intensity.

Defined types and their meaning

In the nix DataModel almost all entities have a name, type, and an id. Name is a user-specified string, id an is auto-generated UUID and the type is meant to provide semantic meaning. The type support in relacs is not very elaborated which is to some extent due to the flexibility of the tool. For example, relacs on its own, has no information whether an recorded trace is the membrane voltage, a temperature or any other kind of measurement.

The following types are used:

type	entity	meaning
relacs.recording	Block	Only one nix::Block is created in each file, all data entities are children of this block and it represents a “recording” session. Session names are created from the date and a suffix.
relacs.data.sampled	DataArray	Regularly sampled data, vectors of time. nix::SampledDimension as dimension descriptor.
relacs.data.events	DataArray	Any kind of event data, e.g. action potentials, etc. Entries denote the time at which the event occurred nix::AliasRangeDimension defines the time dim.
relacs.stimulus.segment	MultiTag	Tags the data segments in which a stimulus was presented. One position and extent entry for each segment in which the identical stimulus was used. This entity is re-used whenever the same stim is presented, even within a different RePro run.
relacs.stimulus.onset	DataArray	Onset times of a stimulus segment(s). nix::SetDimension defines only dimension.
relacs.stimulus.duration	DataArray	Temporal duration of the stimulus segment(s). nix::SetDimension defines only dimension.
relacs.repro	Section	Metadata containing RePro settings and properties.
relacs.repro_run	Tag	Tags the data segment in which a RePro was active and links to metadata. This does not imply that a stim- ulus was active.
relacs.repro_group	Group	Group that contains all entities created during a RePro run.
relacs.feature.time	DataArray	A set of timestamps nix::SetDimension defines only dimension.
relacs.feature.amplitude	DataArray	A feature of the stimulus segment that is the amplitude of the stimulus. nix::SetDimension defines only dimension.
relacs.feature.mutable	DataArray	These features contain the values of settings that are intended to change. Changes in such settings will not lead to the creation of a new MultiTag. nix::SetDimension defines only dimension.
relacs.feature.repro_tag_id	DataArray	Notes the RePro run (the Tag above) during which the stimulus was active. Contains the Tag’s entity id. nix::SetDimension defines only dimension.
